Four Stroke Internal Combustion Engine

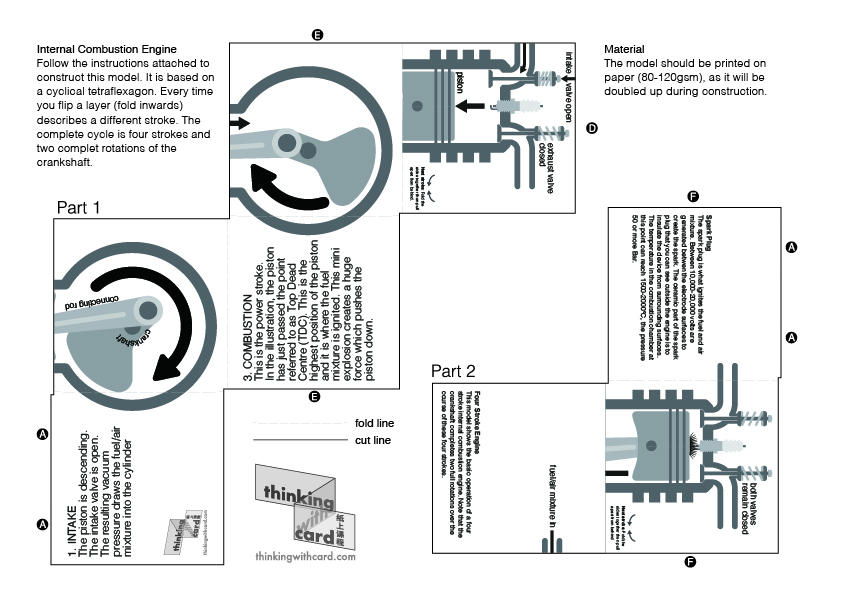

This model shows the basic operation of a four stroke internal combustion engine. It is configured as a cyclical tetraflexagon.

该模型显示了四冲程内燃机的基本操作。 它被配置为一个周期性的四曲面。

Download Files (EN)

文件下载(中文)

Use the buttons above to download the files to your browser. In order to download to your computer, please use ctrl-click and select "download linked file"



Details

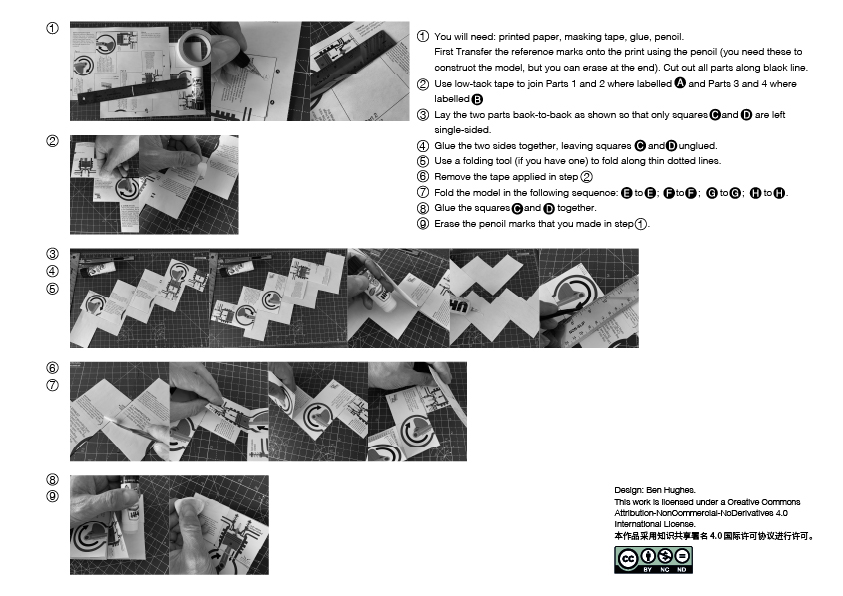

This is quite a complex model to make but not difficult if you follow the instructions carefully. Unlike other models, the engine parts are not individually modelled in card. The tetraflexagon is a mathmatical model which allows the four strokes to be cycled endlessly.

这是一个相当复杂的模型,但如果你仔细按照说明并不困难。 不同于其他型号,发动机部件不单独建模卡。 Tetraflexagon是一个数学模型,它允许四个笔画无休止地循环。

 Design: Ben Hughes.
